ET7076

  • Product Introduction

Compact Landscape Light.

Die casting aluminum body.

Ultra white tempered glass.

Silicone gasket.

High efficiency PMMA lens.

Anti-corrosion electrostatic powder coating.

Stainless steel external screws and mounting plate.

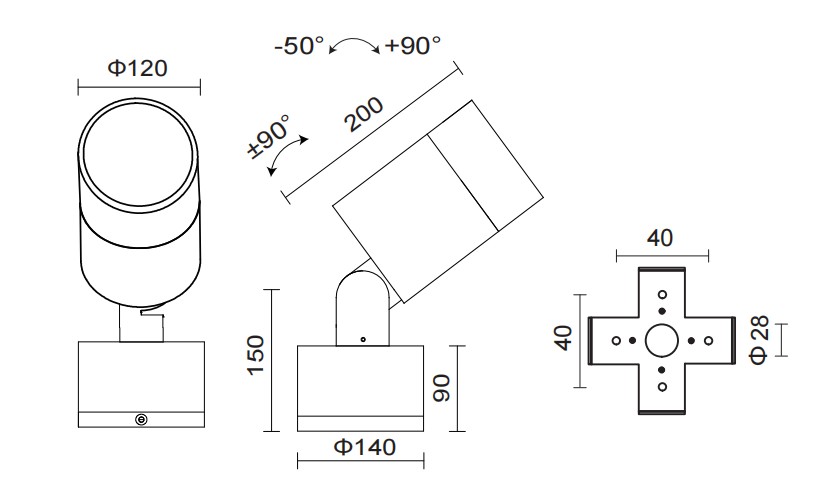

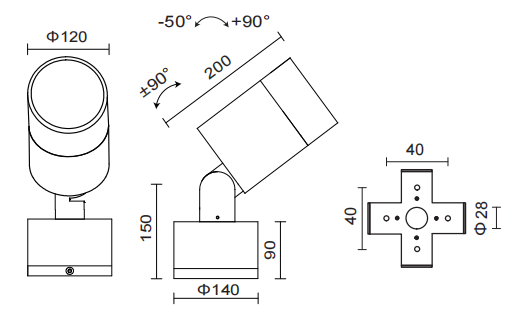

Vertically ± 90 ° adjust and horizontally 360 ° rotate.

Special surface treatment is required for coastal environments.

Structurally waterproof, detachable for easy maintenance of LED, lens, shroud and driver.


Model Power Beam angle CCT Luminous flux Control SDCM CRI LED Voltage Weight
ET7076.RGBW 30W 12°/25°/36°/60°/15°*45° 2700K/3000K/4000K/5000K DMX512 80 LEDx4 24VDC 3.6KG
ET7076 28W 15°/24°/36°/50°/20°*50° 2700K/3000K/4000K/5000K 2471lm（3000K 15°） ON/OFF 3 80 COBx1 220V-240V 3.6KG
  • Specifications
  • Download
  • Accessory

ET7076.RGBW

Electrical and Control

Voltage24VDC
Power30W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityLED X 4
Beam Angle12°/25°/36°/60°/15°*45°
Delivered Lumen
Colour RenderingCRI 80
SDCM3
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3.6KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE


ET7076.RGBW

Documents

ET7076.RGBW

Optional accessories

  • Specifications
  • Download
  • Accessory

ET7076

Electrical and Control

Voltage220V-240V
Power28W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityCOB X 1
Beam Angle15°/24°/36°/50°/20°*50°
Delivered Lumen2471lm（3000K 15°）
Colour RenderingCRI 80
SDCM3
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight3.6KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE


ET7076

Documents

ET7076.IES

ET7076

Optional accessories
