ET7178

  • 产品信息

Mini Landscape Light.

Extruded aluminum alloy body.

Ultra white tempered glass.

Silicone gasket.

High efficiency PMMA lens.

Anti-corrosion electrostatic powder coating.

Stainless steel external screws and M20X1.5 nickel plated brass thread.

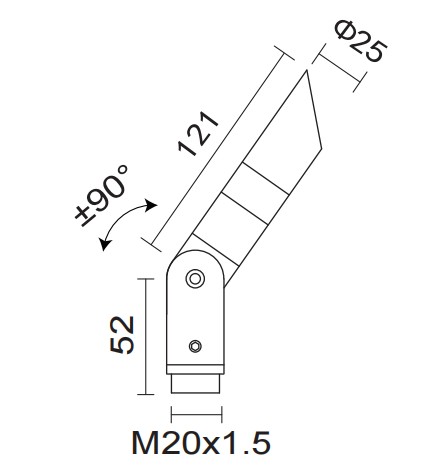

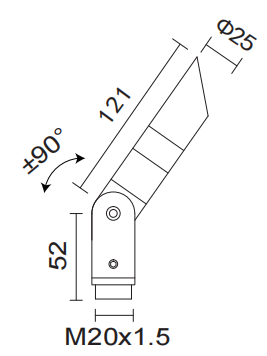

Vertically ±90 ° adjust and horizontally 360 ° rotate.

Special surface treatment is required for special coastal environments.

Structurally waterproof, detachable for easy replacement of LED, lens, shroud and driver.


型号 功率 角度 色温 流明 控制方式 色容差 显色指数 LED 电压 重量
ET7178 3W 15°/24°/36°/50°/20°*50° 2700K / 3000K / 4000K / 5000K 160lm（3000K 15°） ON/OFF 5 80 LEDx1 24VDC 0.2KG
  • 规格
  • 下载
  • 配件

ET7178

Electrical and Control

Voltage24VDC
Power3W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.5M H05RN-F 3x1mm2
Environmental-20 °C ~ 50 °C


LED and Optics

LED BrandCITIZEN / CREE
LED QuantityLED
Beam Angle15°/24°/36°/50°/20°*50°
Delivered Lumen160lm（3000K 15°）
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K / 5000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight0.2KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE
