ET2303

  • 产品信息

Die casting aluminum body and faceplate.

Ultra white tempered glass.

Silicone gasket.

Anti-corrosion electrostatic powder coating.

Stainless steel external screws and mounting plate.

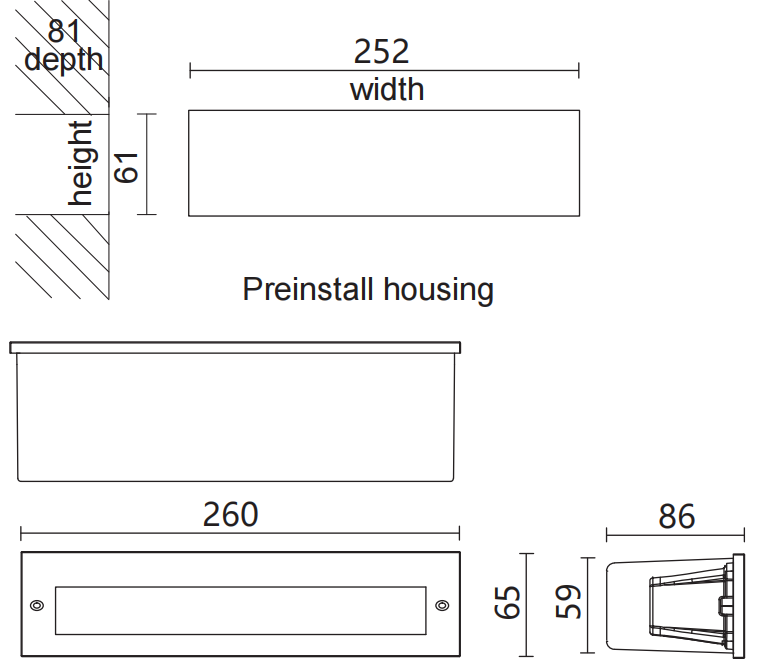

Strengthened PP or SS preinstall box.

Design of structural heat dissipation.

On/off standard and 0-10V.

The light can be installed on pillar, wall or side of stais according to it's size.

Can be used to indicate or light on small path or ground area, no risks to  public for it's recessed mounting design.



型号 功率 角度 色温 流明 控制方式 色容差 显色指数 LED 电压 重量
ET2303 8W 360° 2700K / 3000K / 4000K 463lm ON/OFF 5 80 SMDx9 100V-240V 1Kg
  • 规格
  • 下载
  • 配件

ET2303

Electrical and Control

Voltage 100V-240V
Power8W
Power SupplyBuilt-in
ControlON/OFF / 0-10V / DALI
Cable0.3M H05RN-F 3x1mm2
Environmental                                                                                        -20 °C ~ 50 °C


LED and Optics

LED BrandOSRAM
LED QuantitySMDx9
Beam Angle360°
Delivered Lumen463lm
Colour RenderingCRI 80
SDCM5
CCT2700K / 3000K / 4000K
LED OpticPMMA Lens


Physical

HousingDie-cast aluminum
Lens MaterialTempered glass
External ScrewStainless steel material
Surface TreatmentAnticorrosive coating
Net Weight1KG
Warranty3 years
RatingIP65
Impact ProtectionIK08
CertificationsCE



ET2303
