Aviation aluminum profile .
Ultra white tempered glass.
Silicone gasket.
Anti-corrosion electrostatic powder coating.
Stainless steel external screws and mounting plate.
On/off standard, DALI , 0-10V or Traic dimming is optional.
No upward lighting, and the lighting distribution evenly throws on the ground.
Adopting a directional multi particle asymmetric reflecting device,
resulting in higher luminous efficiency and wider directional irradiation range.

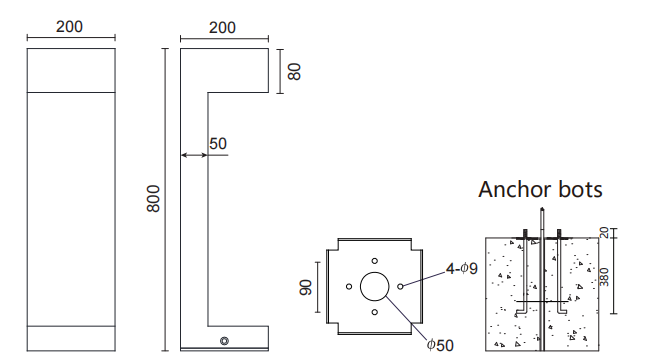

The anchoring devices provided by ET Lighting are all made of SS304 material, with high strength, corrosion resistance, and long lifetime.
| Model | Power | Beam angle | CCT | Luminous flux | Control | SDCM | CRI | LED | Voltage | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| ET5169 | 20W | 360° | 2700K / 3000K / 4000K | 998lm | ON/OFF | 5 | 80 | LEDx8 | 220V-240V | 4Kg |
Electrical and Control
| Voltage | 220V-240V |
| Power | 20W |
| Power Supply | Built-in |
| Control | ON/OFF / 0-10V / DALI |
| Cable | 0.5M H05RN-F 3x1mm2 |
| Environmental | -20 °C ~ 50 °C |
LED and Optics
| LED Brand | CREE |
| LED Quantity | LEDx8 |
| Beam Angle | 360° |
| Delivered Lumen | 998lm |
| Colour Rendering | CRI 80 |
| SDCM | 5 |
| CCT | 2700K / 3000K / 4000K |
| LED Optic | PMMA Lens |
Physical
| Housing | Die-cast aluminum |
| Lens Material | Tempered glass |
| External Screw | Stainless steel material |
| Surface Treatment | Anticorrosive coating |
| Net Weight | 4KG |
| Warranty | 3 years |
| Rating | IP65 |
| Impact Protection | IK08 |
| Certifications | CE |
